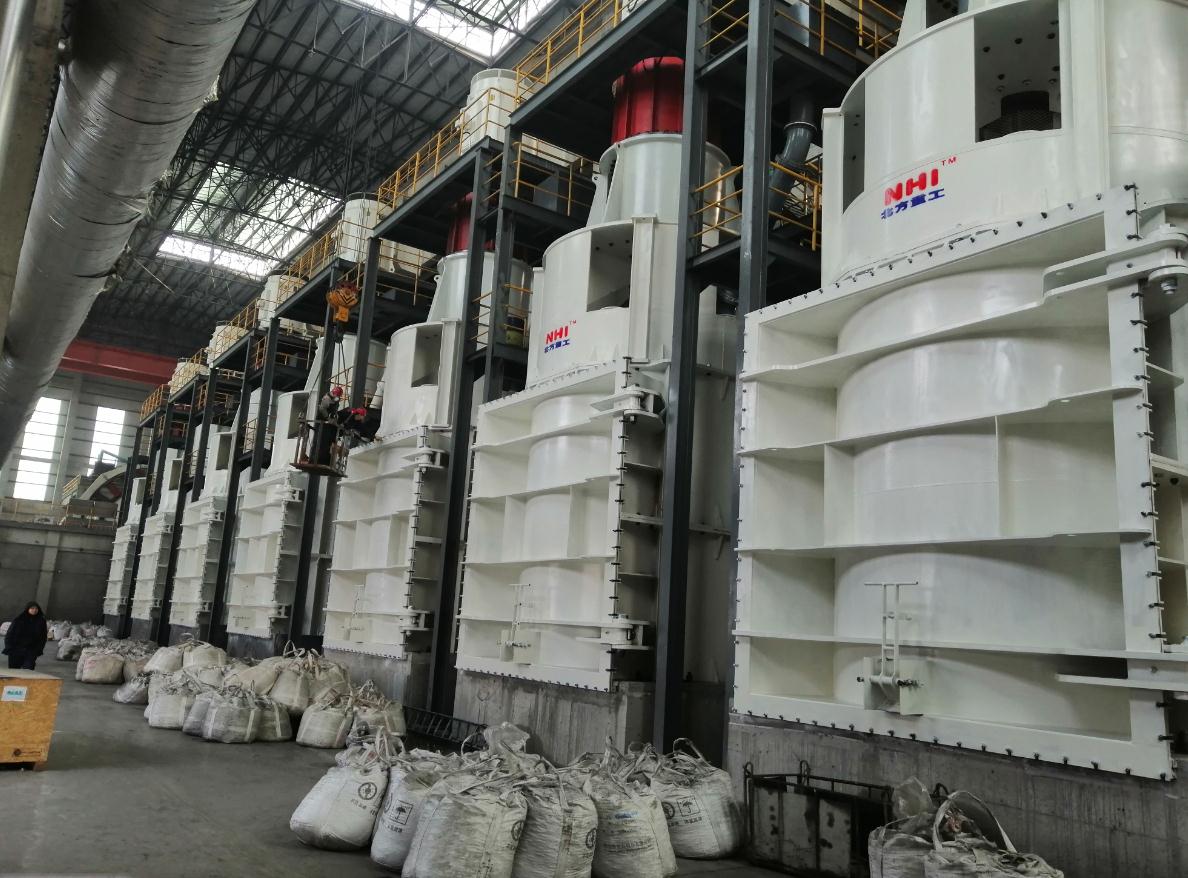

Spiral Vertical Mill

1. Scope of Application
The spiral vertical mill is mainly used in the crushing and grinding of metal ores, the crushing and deep processing of non-metallic ores, the comprehensive utilization of low-grade minerals, the extraction of useful elements from tailings and other mining industries, powder metallurgy, mechanical alloying, metallurgical raw material treatment, utilization of metallurgical waste residue, cemented carbide production and other industries.
2. Parameter Specification
Model:MLL200~MLL3357
Power (kW):200~3357
3. Product Introduction
The spiral vertical mill is used to grind and refine particles by stirring. Under the stirring of the agitator, the medium ball and mineral aggregate in the mixing tank perform multi-dimensional circular movement and self rotation movement. The gravity generated by the medium ball and mineral aggregate and the centrifugal force generated by the rotation are comprehensively used. The impact, friction and shearing effects are generated between the medium balls, between the mineral aggregate and between the medium ball and mineral aggregate. The mineral aggregate is deformed, fractured and finally crushed under the action of momentum and impulse to achieve the ideal particle size. Under the same power, compared with the traditional ball mill, the energy saving is 30%~50%. The smaller the product size, the more obvious the energy saving effect. The maximum feeding particle size can reach 6mm, and the minimum discharging particle size can reach 0.02mm. The spiral vertical mill is a kind of ultra-fine grinding equipment, which grinds ores or other materials with a certain particle size into finer particles.
4. Main Experience Projects.
Domestic:  Panzhihua Iron and Steel Group Xinbaima Company and Benxi Dongfang Sanjiazi, 37 set.
Abroad: Morovali Mine of Indonesia Newmont Company, Congo Kinshasa of Jinchuan Group, etc 4 sets.
