1.Scope of Application

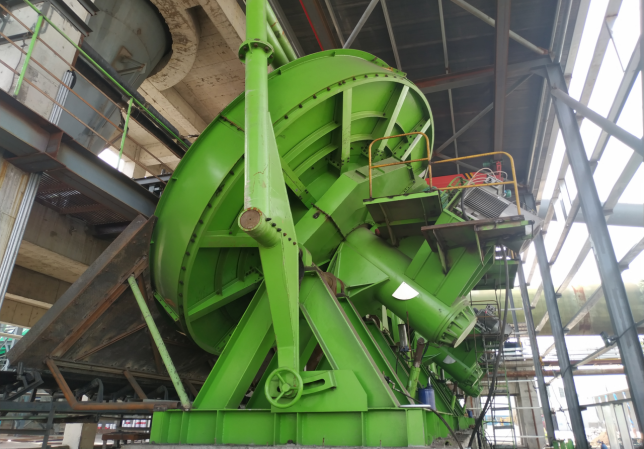

Disc pelletizer is the equipment for producing green balls in the pelletizing production process. When the disc rotates around the central axis, the pelletized materials roll along the bottom of the disc, and the fine materials are continuously adsorbed on the wet surface of the master ball, so that the master ball continues to grow to the specified size. Its working characteristics: the material moves regularly, the larger pellets and the smaller pellets move along different tracks respectively, and the green pellets with qualified size are discharged according to the size classification.
2.Model and Specification

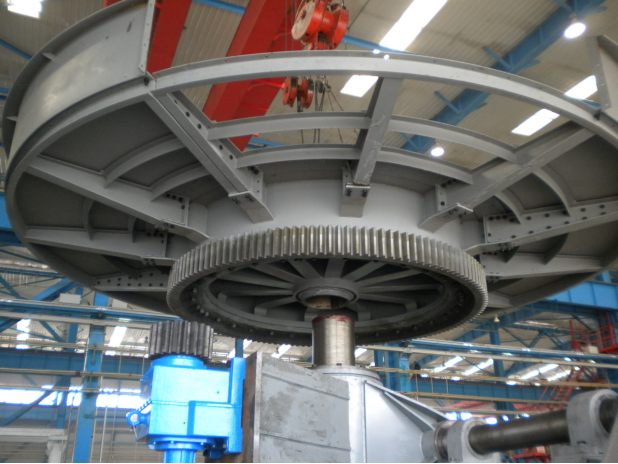

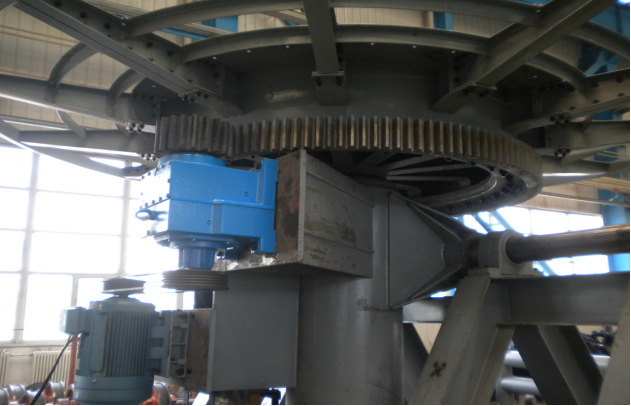

According to different structures of the equipment, it can be divided into two types of disc pelletizers: external gear meshing type and slewing bearing type. Common specifications and models in the market are φ 6000 disc pelletizer, small specifications and models φ 3500, φ 4500, φ 5500, large specifications and models φ 7000, φ 7500, etc. The production lines with different output can be adjusted by increasing or decreasing the number of disc pelletizers.
Disc pelletizer designed and manufactured by NHI uses the electric rotary scraper to scrape the disc surface and move particles to pelletize, with strong adaptability; Inclination and rotation speed can be adjusted; The structural form is simple countercurrent type, which is easy to install and maintain; Strong production capacity, high efficiency, and large output. Our company can design and manufacture various specifications and models of disc pelletizer according to the needs of users.
Name: 6m disc pelletizer~7.5m disc pelletizer
Disc diameter mm: 6000mm~7500mm

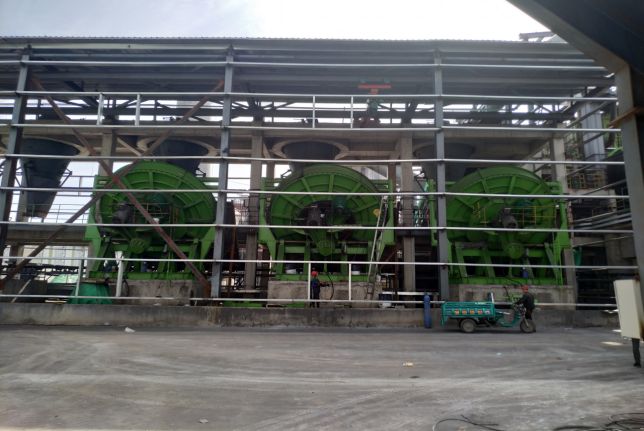

Experience in China: Baoshan, Yunnan and Xintaixin, Fengzhen, Inner Mongolia.（6 Sets Including）
Experience Overseas: Indian Xiaam Metal Power, Indian Xiaam Steel Power, etc （14 Sets）
